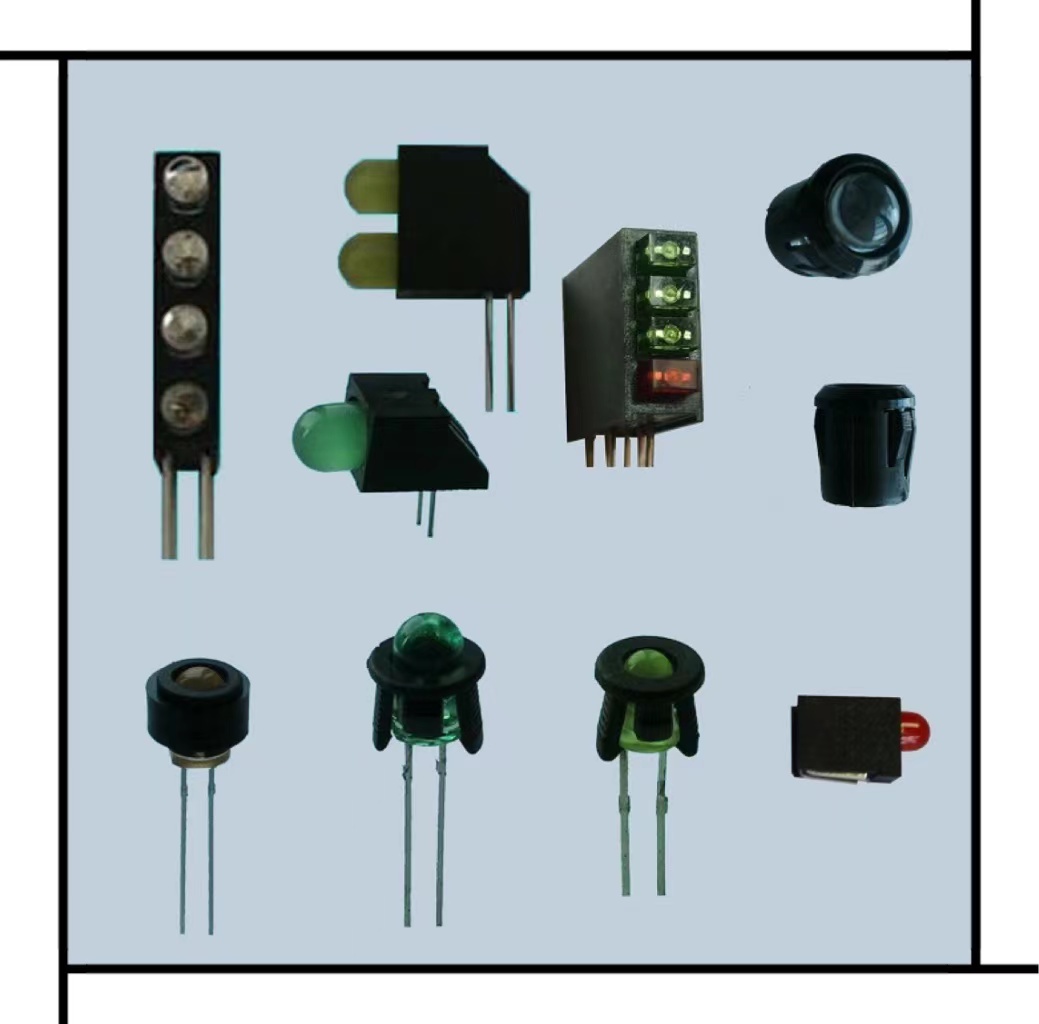

Full series of LED House

For 3mm LED: H30-1U, H30-2, H30-3, H30-4, H31, H32, H3301-15, H3LC13

For 5mm LED: H50-1, H50-2, H51, H52, H52L, H5L4

For 8mm /10mm LED: H82, H102

Application

Versatile mounting on PCB or panel, and colors can be mixed in a single housing

Data

Material: PP-2, Color: Black

Dimension

For 3mm LED

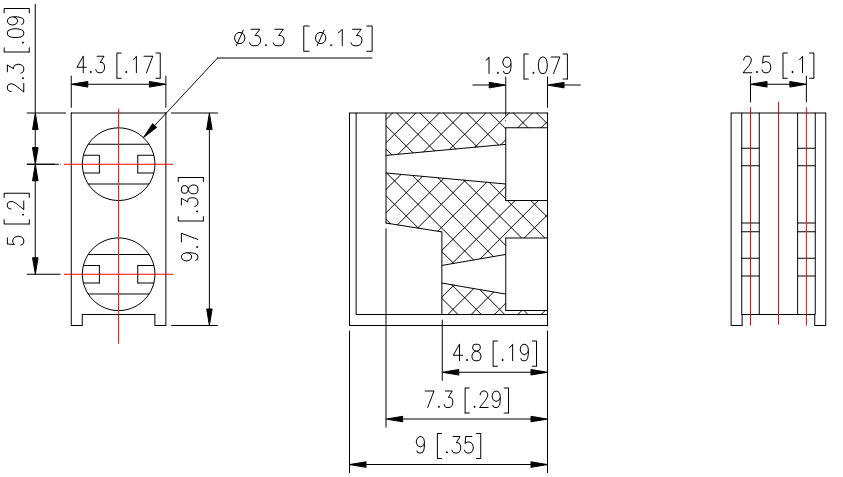

H30-1U	H30-2

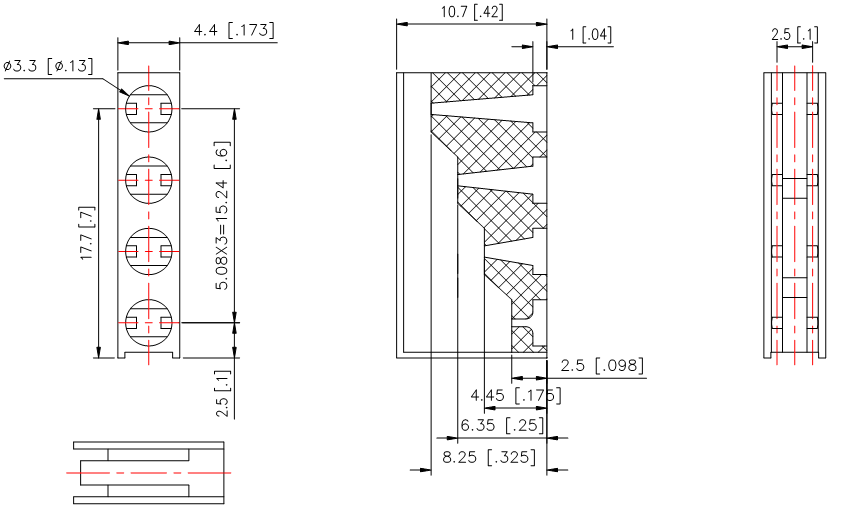

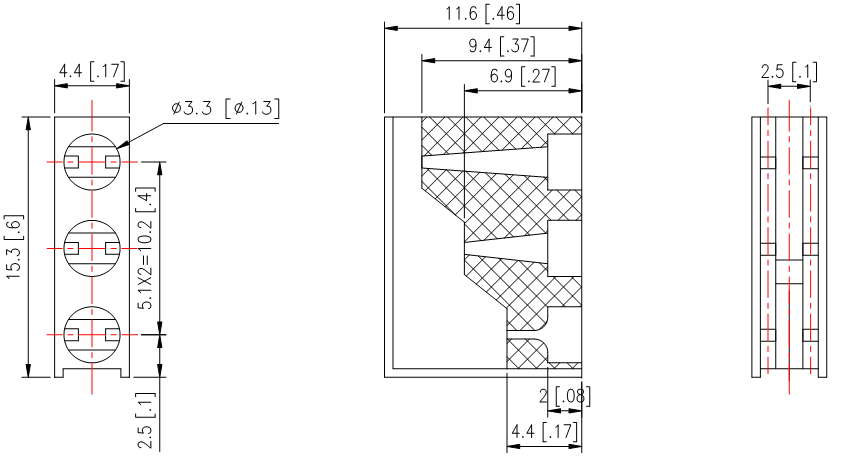

H30-3	H30-4
H31	H32
H3301-15	H3LC13

H50-1	H50-2

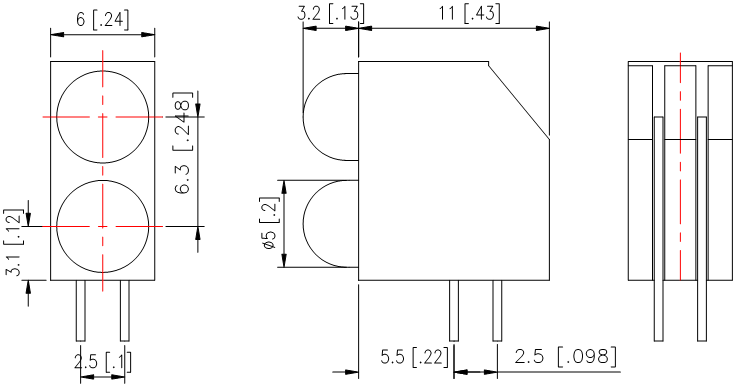

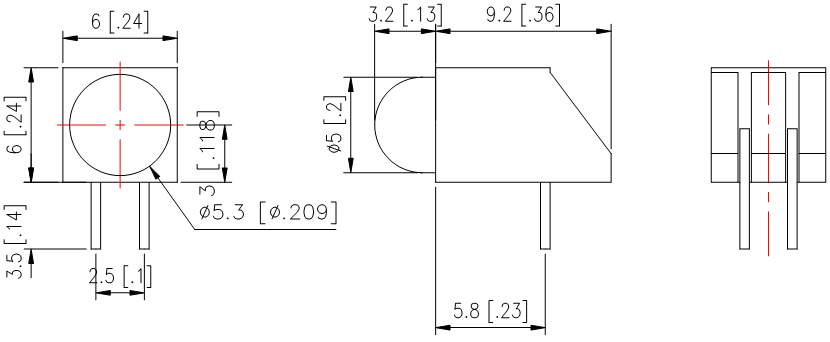

H51	H52
H52L	H5L4

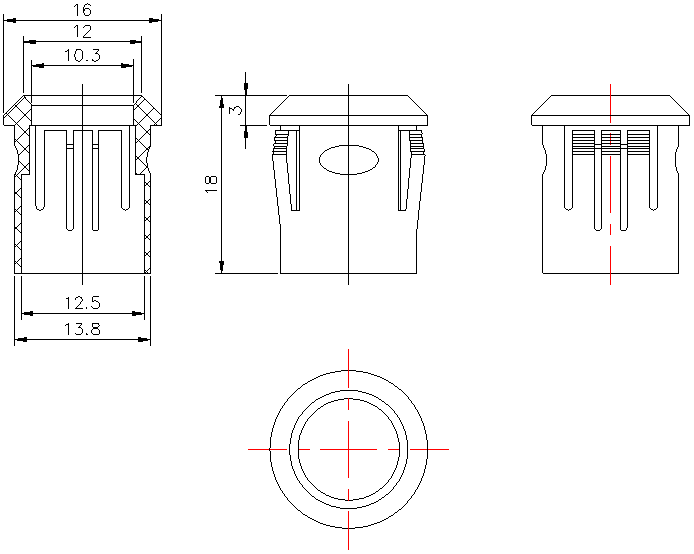

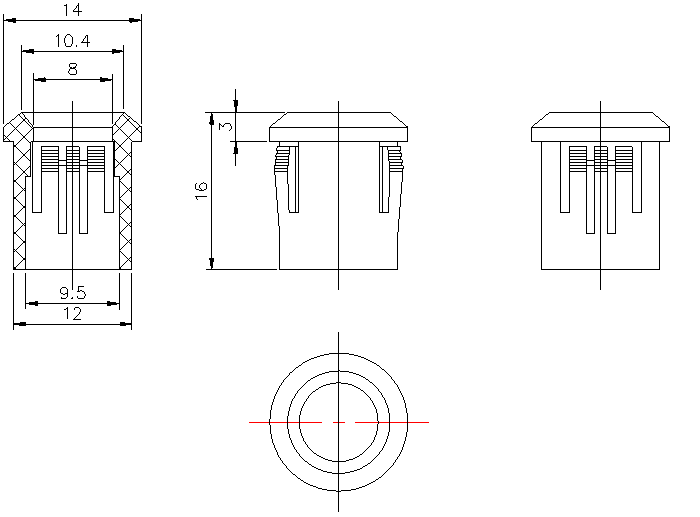

H82	H102
